Product Description
Focusing on the customer value and emphasizing the customer's experience, a new generation loader boasts outstanding advantages(such as efficiency) in the field of engineering constructions, aggregate yards, and coal logistics.
Model Characteristics
1. Wet axle and more than 60 new designs on systems about hydraulic, electrical, pipes, etc.
2. Turbocharged engine & optimized radiator system
3. Special technology on hydraulic steering with less steering round and shorter working time
4. Strengthened bucket with wear-resisting plate
5. Driver-friendly specious cabin with A/C as optional choice
6. Backward-open engine cover
7. Optimized brake system with reliability & strong brake effect
Product Usage
The NK30B is a kind of construction machinery with high working efficiency. It is mainly used for shoveling, loading, transporting, digging and other operations on loose accumulated materials. It can also be used to clean up, level the site and perform traction operations; after replacing the corresponding working device, it can also be used for digging, lifting and Loading and unloading materials.Widely used in urban construction, mines, railways, highways, hydropower, oilfields, national defense and airport construction and other engineering constructions, it is extremely important for accelerating project progress, ensuring project quality, improving working conditions, improving work efficiency, and reducing construction costs. effect.
Quick Details
| Main Specifications |
| Operating Mass(kg) |
10400 |
| Overall Size(mm) |
6793x2519x3150 |
| Rated Load Weight(kg) |
3000 |
| Tipping Load(kg) |
6000 |
| Bucket Capacity(m³) |
1.7 |
| Wheelbase(mm) |
2573 |
| Dump Height(mm) |
2964 |
| Dump Reach(mm) |
1022 |
| Min. Turning Radius(mm) |
5215 |
| Max. Forward Speed(km/h) |
33 |
|
Engine
|
Emission Regulation |
Tier2/Stage II |
| |
Make |
Weichai |
| |
Rated Power(kW) |
92 |
| |
Rated Revolution(r/min) |
2200 |
|
|

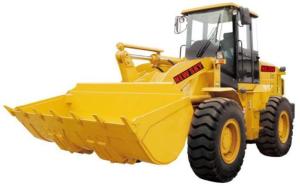

Front End Loader Nk30B,bucket wheel loader NK30B,Wheel shovel loader Images
|
