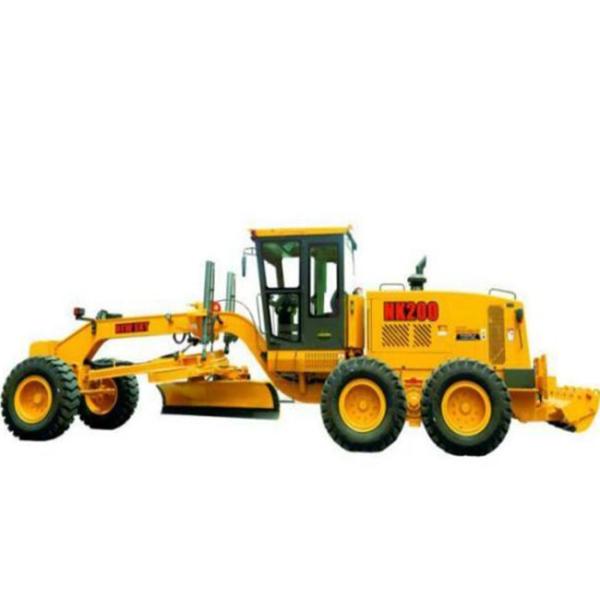

High grade construction motor grader 220Hp original NEWSKY 17ton grader NK200
Grader NK200 fratures
- Shangchai SC11CB220G2B1 engine:strong power,low fuel consumption,emission noise in line with national standards
- With ZF transmission,6F&3R gearshift:High effency,high reliability and long life
- Split three-stage drive axle,NO-SPIN(anti-slipping) differential with autommatic locking/releasing function
- REXROTH(Germany) fully-hydraulic braking system
- Meet ROPS/FOPS international standard,and ensure the safety of drivers
- Air conditioner,comfortable and wide view
NK200 Parameters
| Main specification | |
| Total weight | 16500kg |
| Front axle | 4650kg |
| Rear axle | 11850kg |
| Dimension | 9250*2600*3330mm |
| Front wheel steering angle | 6340mm |
| Middle wheel to rear wheel | 1154mm |
| Tread distance | 2250mm |
| Max. front wheel steering angle | 45° |
| Max. articulated steering angle | 20° |
| Min. Tuning radius | 8100mm |
| Speed | |
| Forward | 5.8,10.2,12.02,19.84,24.49,38.50 km/h |
| Back | 5.81,10.20,24.49km/h |
| Engine | |
| Model | Shangchai SC11CB220G2B1 |
| Rated power/Rated revolution | 162kw(220hp)/2200rpm |
| Moldboard | |
| Length | 3962mm |
| Arched hight | 610mm |
| Max.Tilt angle | 90° |
| Rotating angle | 360° |
| Max.Digging depth under ground | 485mm |
| Max. Side-extending length(left/right) | 2330mm |
NK200 Advantages
1.Shangchai engine,ZF transmission Meritor drive axle make the dynamic matching of transmission more reasonable and reliable.
2.Adopt vibration elimination,sound absorption,sound insulation and other measures to reduce the noise inside and outside the cabin.
3.Double circuit hydraulic braking system make braking more reliable and stable
4.The steering load sensing system is adopted,and the main hydraulic unit adopts internation product,which ensures the stability and reliability of the system.
5.Multiple optional parts expand the performance and working range of the machine.
6.Air conditioner,ROPS and FOPS cabin,comfortable and ensures the safty of the drivers
7.360° glass cabin,give you a wide vision experence
8.Widely used in road,airport,farmland.and other large-scale ground leveling,ditching,slope scraping,soil pushing,flower scraping,snow removal and other work.

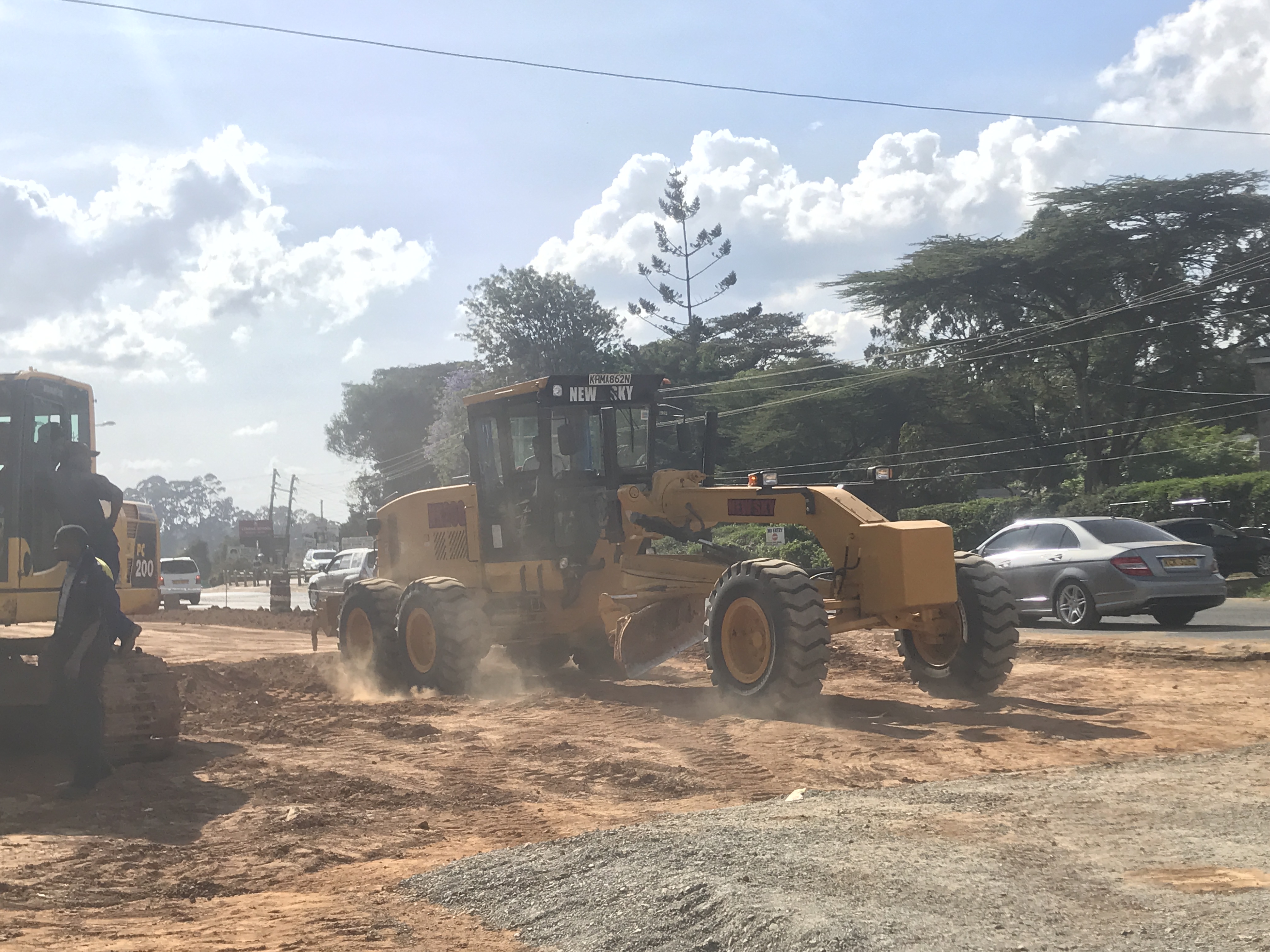

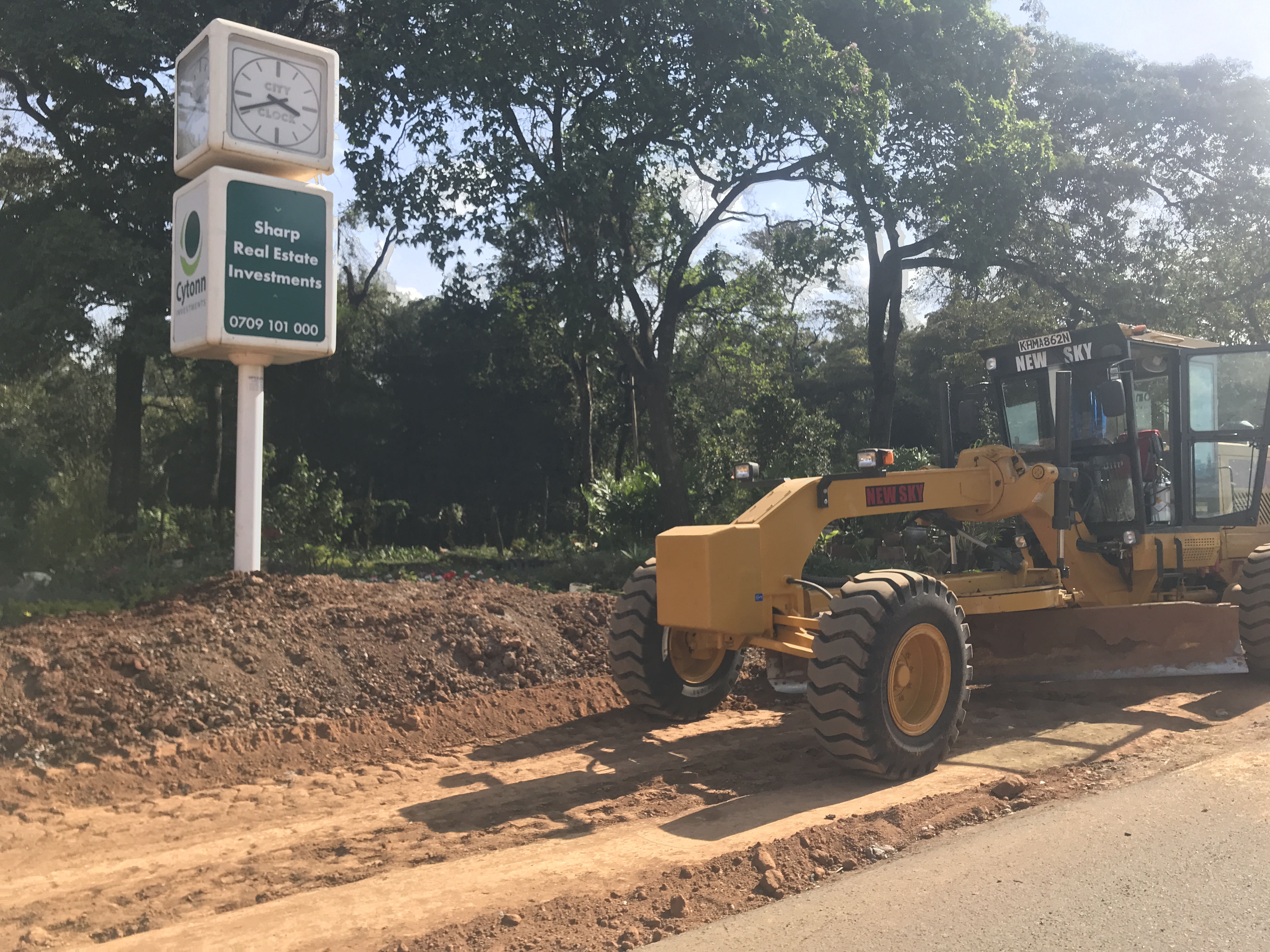

NK200 grader in working
NEWSKY around the world
Contact
Laura Wang
Skype:Laurawjf
Mobile/Whatsapp:+8618354287687
Wechat ID:junfang278697
E-mail:nk.machinery-02@newskychina.cn
FAQ
1.Are you manufacturer?
Yes,we are manufacturer located in Chengdu city,Sichuan province,China
2.Which country do you export to?
Mainly export to Myanmar,philipines,Kenya,tanzannia,Saudi Arabia,Iran,Australia,Kyrgyzstan,Ukraine,Belarus,Russia ...etc
3.What kind payment terms can you accept?
Mainly are LC and TT terms
4.How about the delivery time?
About 7-40 days after receiving the deposit
5.What about the warranty time of your machinery?
1 year or 2000 hours
