NK170 Weichai Engine 180kw Grader Heavy Equipment

Product Categories

Linyi New Sky Construction Machinery Co., Ltd.

Contact Now

Name: NK170 Weichai Engine 180kw Grader Heavy Equipment
Brand: New Sky
Price: 1 USD

Brand Name : New Sky

Model Number : NK170

Certification : ISO

Place of Origin : China

Payment Terms : T/T, L/C

Delivery Time : 15-30 work days

Moving Type : Wheel Loader

Warranty : 1 Year

Engine Brand : Weichai

Blade : 3658*610mm

Rated power : 180kw

Contact Now

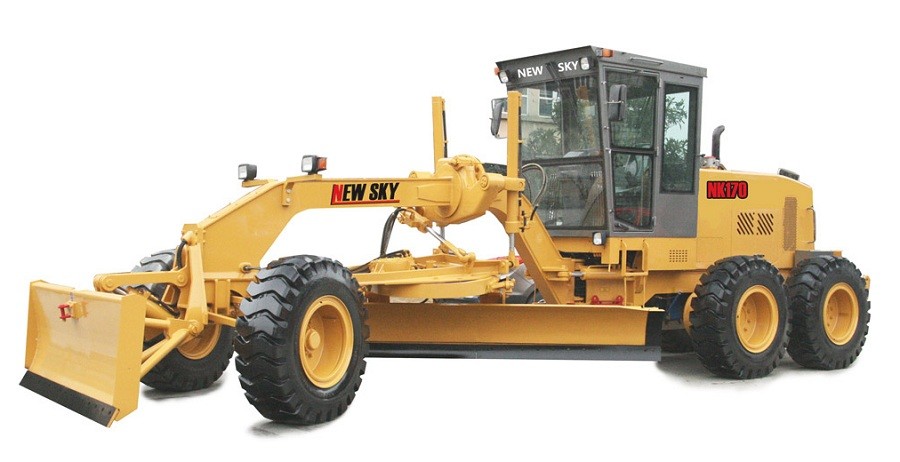

New Sky Official Manufacturer NK170 Motor Grader, Leading Brand

Advantages:

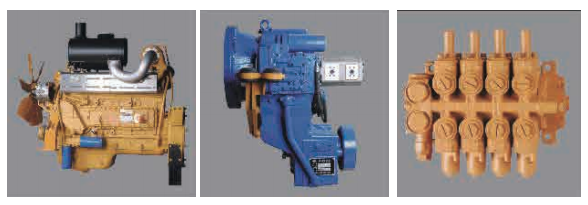

1. Wei Chai Deutz engine, environmental friendly type but high eeficiency, which matches both developed and developing countries well

2. Hang Chi (Advance) 6WG180 transm ission (6 F/3 B), which is controlled by electro-hydraulic system and powe shift model

3. Cabin is with ROPS/FOPS standard, all nessary accessaries are equipped, like Air-condition, MP3 player, ect.

4. Hydraulic System is open-type (HUSCO control valve) and the body frame is sealed box-structure, which is solid and strong

5. Single-lever Joy stick makes the control and operation easy and sensitively

6. Blade is with adjustable control system in the size: 3658mm (12ft)

Specification:

Main Specifications
Overall Size(mm)		8770×2600×3330
Wheel Track(mm)		2250
Max. Traction(kN)		90
Blade Cutting Force(kg)		7030
Operating Mass	Total Weight(kg)	14500
	Front Axle(kg)	4350
	Rear Axle(kg)	10150
Wheelbase	Front Wheel Steering Angle(mm)	6453
Wheelbase	Middle Wheel to Rear Wheel(mm)	1500
Steering System	Max. Front Wheel Steering Angle(°)	50
	Max. Articulated Steering Angle(°)	25
	Min. Turning Radius(mm)	7500

Product Show:

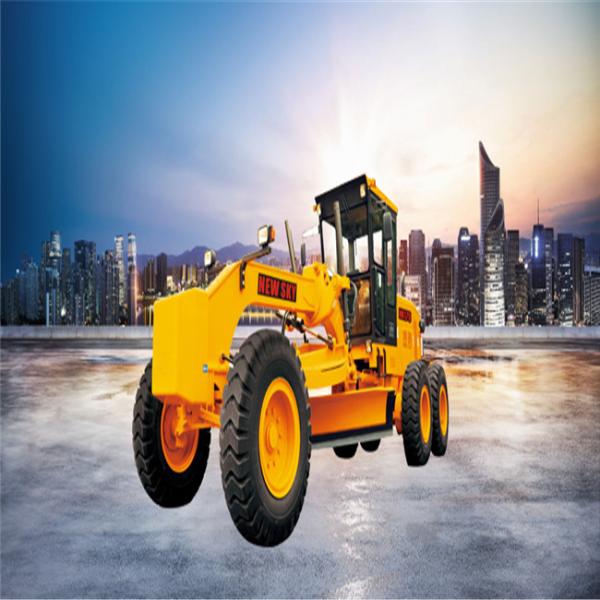

NK170 Weichai Engine 180kw Grader Heavy Equipment
