ISO9001 Standard Road Maintainer Motor Grader For Bulldozing

Brand Name : New Sky

Model Number : NK190

Certification : ISO9001

Place of Origin : China

MOQ : 1 set

Price : USD$59500-USD$62000/set

Payment Terms : T/T, L/C

Supply Ability : 30sets/month

Delivery Time : 30days

Packaging Details : Comply with export packaging requirements

Warranty : 1 year

Contact Now

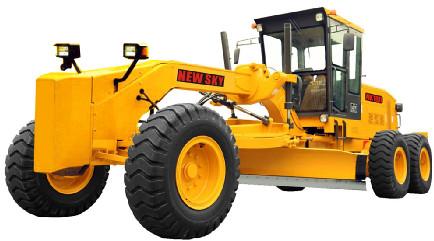

NEW SKY official 190HP brand new motor grader NK190

The grader is mainly applied to large-area ground leveling, ditching, slope scraping, bulldozing, ripping and snow removing works for highways, airports and farmlands etc.

Advantages and Highlights:

1. The NK 190 adopts Weichai Styer engine with low emission and high efficiency turbocharged diesel engine, which has large output torque and power reserve coefficient and low fuel consumption.
2. The torque converter has a large torque coefficient, a high efficiency, a wide effective area, and a good joint operation characteristic with the engine.
3. Rear axle main drive is equipped with "NO-SPIN" without self-locking differential. When one wheel slips, the other wheel can still transmit its original torque.
4. The service brake is a dual-circuit hydraulic brake system that acts on the two rear wheels of the grader and is safe and reliable.
5. The sealed cab is used to configure the air conditioning system. The interior parts are sleek and compact plastic parts, which fully reflects the needs of ergonomics.The precision, reliable, low maintenance circle bearing reduces maintenance costs.

Product Paramenters

Overall Size (mm) 9250x2600x3330
Wheel Track (mm) 2250
Max. Traction (kN) 103
Blade Cutting Force (kg) 7700
Total Weight (kg) 16000
°Massn9 Front Axle (kg) 4400
Rear Axle (kg) 1160
Front Wheel Steering Angle (mm) 6340

^^/hcd base

Middle Wheel to Rear Wheel (mm)

 1550
Max. Front Wheel Steering Angle (°) 45
^y^eni ^ax- Articulated Steering Angle (°) 20
Min. Turning Radius (mm) 8100
Length (mm) 3962
Arched Height (mm) 610
Max. Tilt Angle (°) 90
Rotating Angle (°) 360
Blade Cutting Angle Adjusting Range (°) 30-65
Max. Lift Above Ground (mm) 455
Max. Digging Depth Under Ground 495
(mm)
Max. Side-extending Length (Left/ 2330/3310
Right) (mm)
